The new 30-tonne hydraulic toe jack TJP
Lightweight. Portable. High-capacity.
Make moving heavy loads easier: The new 30-tonne hydraulic toe jack combines immense lifting power with a compact, lightweight design. Thanks to the flexible, three-position adjustable lifting toe and foldable legs, you gain maximum control and mobility on site. For you, this means lifting, positioning, and aligning heavy machinery noticeably faster and more safely. Experience a powerful, agile alternative to bulky competing models.
High capacity in a minimal footprint
Harness maximum power in the tightest of spaces: thanks to its robust yet lightweight aluminum construction, this toe jack combines immense lifting capacity with effortless portability. Where bulky, heavy steel jacks reach their limits, this lightweight alternative offers the perfect balance of mobility and optimal lifting height. This allows you to position your machines with absolute safety and precision, even when they are placed extremely close together or right up against a wall.
Greater lifting height for faster workflows
Save valuable time on every project: With a maximum lift of 200 mm, this powerful machine jack allows you to reach the desired lifting height in significantly fewer steps. This drastically reduces the need for tedious, repetitive repositioning and time-consuming blocking-up compared to models with a shorter lift range. Thanks to the faster attainment of the required height, you can position transport rollers, dollies, or supports underneath the load noticeably more quickly and smoothly.
Safe handling, even in the tightest of spaces
Protect your team and improve ergonomics: weighing just 80 kg and featuring folding legs and a long removable handle, the lifter is effortless to transport and position. Its three-position tilting toe adapts flexibly to any challenge. For maximum workplace safety, the lifter is easily operated via a remote-controlled pump; this allows you to lift and position heavy loads from a safe distance, minimize physical strain, and maintain full control at all times.
Technical data
Max. toe capacity kN: 235
Max. capacity on top kN: 294
Stroke mm: 200
Oil Capacity cm³: 884
Weight kg: 80
Toe positions: 3
Toe heights mm: 37.4, 131.4, 225.4
Max. operating pressure bar: 700
Item number: 2532-030

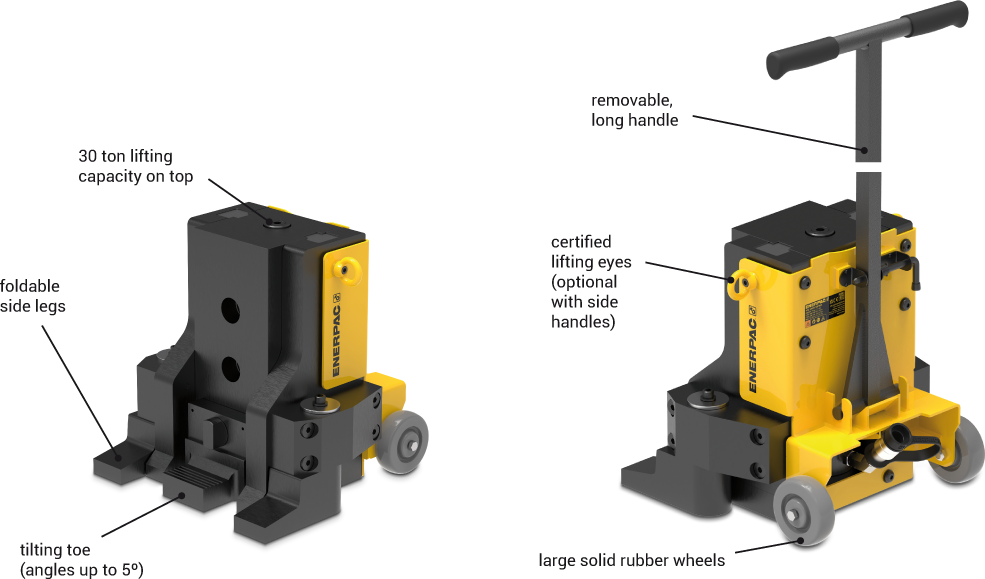

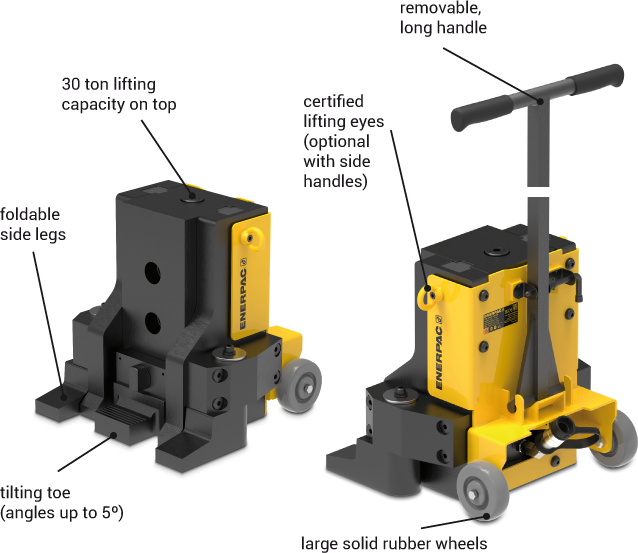

Your benefits at a glance:
High lifting capacity up to 30 t
Lightweight aluminum construction, only 80 kg
ideal for halls with limited space
compact footprint
high lifting height of 200 mm
detachable handle
adjustable toe tiltable to three positions
foldable side legs
solid rubber wheels
