Safe screwing under voltage
The Impact socket system up to 1000 volts
The new Momento ePROOF system allows you to safely tighten and loosen screws or nuts using a machine, up to 1000 V. By using an insulated adapter in combination with the Silverline power sockets, you reduce the risks when working on live components to a minimum.

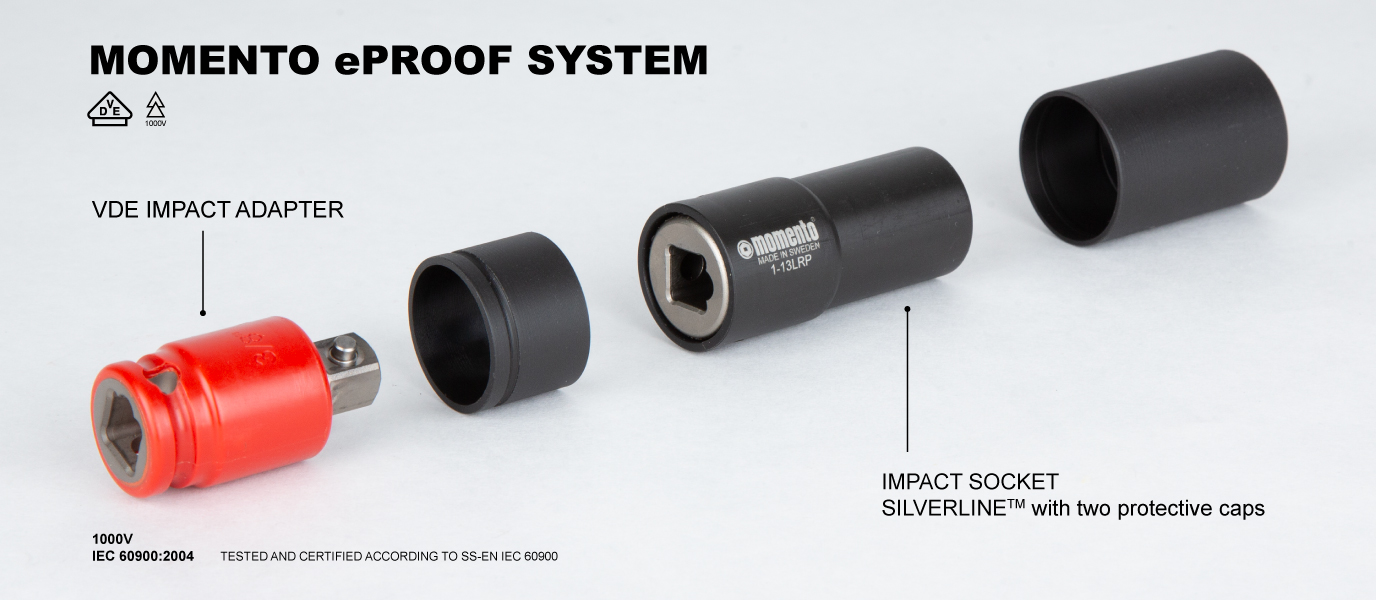

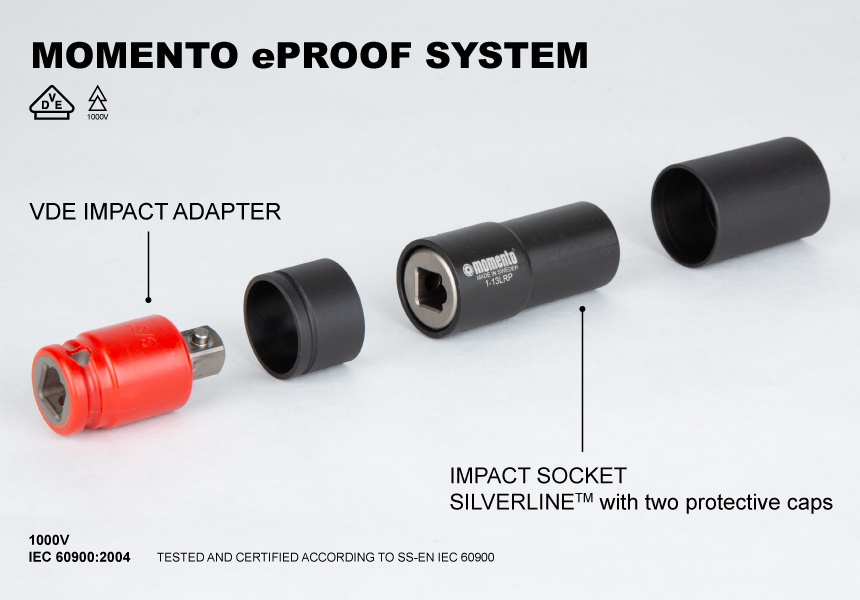

Maximum protection for your work: The new VDE impact adapter
Optimize your workflows with the perfect combination: Our VDE Impact adapter, together with the Silverline™ Impact sockets, forms a fully insulated system. Two freely rotating protective caps ensure maximum external safety – these are already included with the sockets.
Your advantages at a glance:
- Tested safety: Certified according to the standard IEC 60900:2004.
- With certificate: Every VDE impact adapter comes with a test certificate.
- Maximum efficiency: Powerful, machine-driven screwing with maximum occupational safety.
VDE impact adapter
up to 1000 volts
1/4" drive | maximum load capacity = 30 Nm
3/8" drive | maximum load capacity = 110 Nm
1/2" drive | maximum load capacity = 220 Nm
Impact sockets Silverline™ with protective caps
Suitable for adapters with 1/4" drive
Short version = length 57 mm
Wrench sizes in mm: 5, 6, 7, 8
Long version = length 89 mm
Wrench sizes in mm: 5, 6, 7, 8
Suitable for adapters with 3/8" drive
Short version = length 69 mm
Wrench sizes in mm: 6, 7, 8, 9, 10, 11, 12, 13, 14
Long version = length 92 mm
Wrench sizes in mm: 6, 7, 8, 9, 10, 11, 12, 13, 14
Suitable for adapters with 1/2" drive
Short version = length 80 mm
Wrench sizes in mm: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
Long version = length 123 mm
Wrench sizes in mm: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16
Note from the manufacturer: Provides protection against electrical faults and shock hazards up to 1000V. Ensure correct installation and regular inspection. Warranty and safety compliance are void if the product is altered, modified, or repaired by unauthorized individuals. Use only as directed, follow manufacturer guidelines, and do not disassemble or tamper with any components. Do not use if you notice any irregularities, damage, or unusual behavior in operation. Do not store in direct sunlight.
