Removing bolts made easy!
Accelerated pin removal for heavy machinery and construction equipment with the hydraulic pin removal kit
Enerpac's new PPH Series hydraulic pin removal kit sets a new standard for efficient bolt removal when servicing heavy machinery, mining and construction equipment. The tool features innovative features that make bolt removal faster, safer and easier.

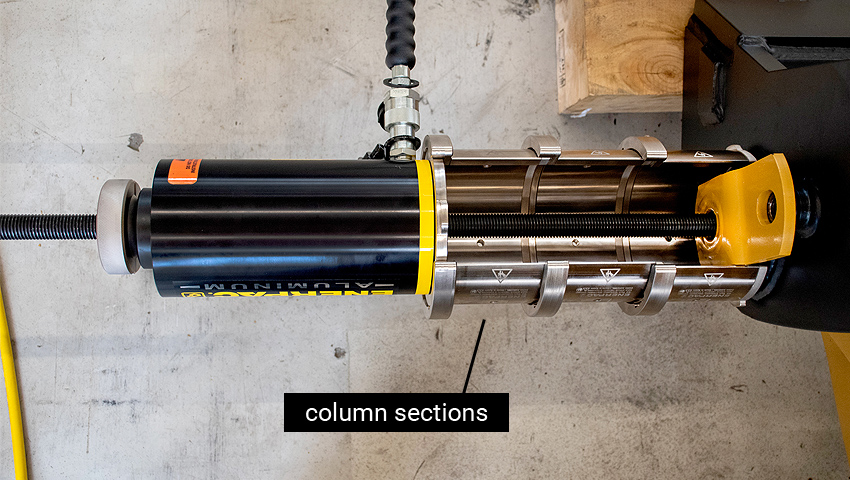

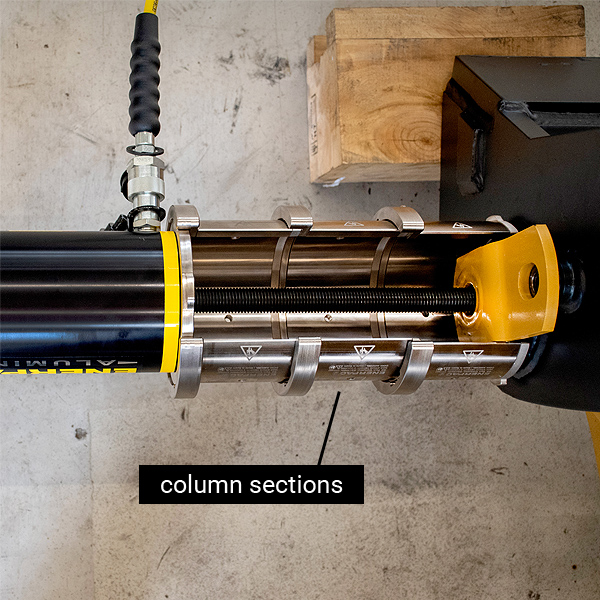

Lockable column sections, so-called collars, allow the C-shaped construction to be adapted to your needs. This means increased flexibility and an accelerated assembly process. Spring-loaded locking pins ensure your safety and prevent the collars from falling down when a bolt is removed.

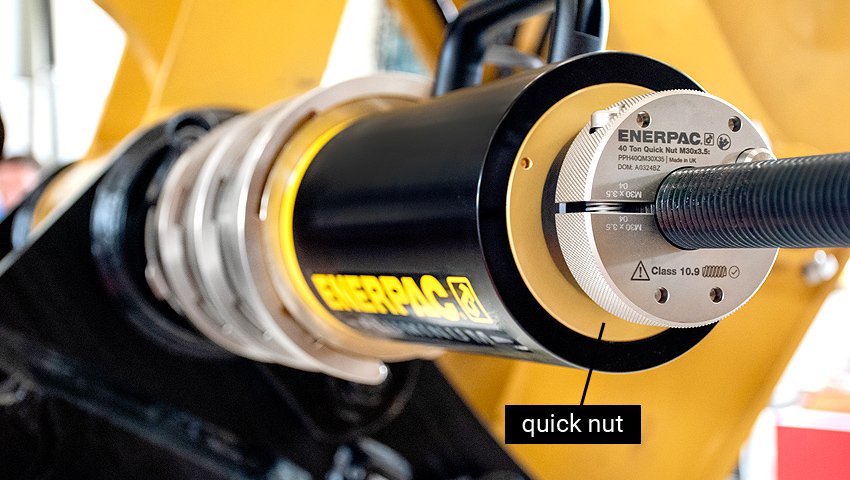

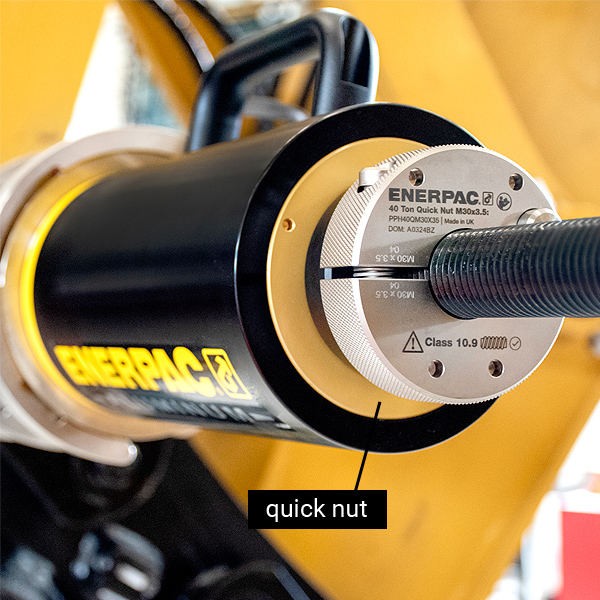

The innovative quick release nut can be operated effortlessly with one hand and excels where conventional nuts fail, significantly reducing downtime and quickly bridging damaged threads. The sophisticated, patent-pending design with lockable column sections offers the crucial flexibility to effectively adjust the configuration for any task. Leave cumbersome and risky bolt removal methods behind!
Model: PPH40
Capacity t (kN) max.: 40 (356)
Stroke mm: 100
Oil volume cm³: 511
Quick nut included in set: 1 1/4" - 12 UNF
Recommended drive unit - models: SC, XC2, PATG, ZU4, ZE2
Weight kg: 10
Article number: 2598-040
Modell: PPH66
Capacity t (kN) max.: 66 (587)
Stroke mm: 100
Oil volume cm³: 847
Quick nut included in set: 1 1/2" - 12 UNF
Recommended drive unit - models: XC2, PATG, ZU4, ZE2
Weight kg: 22
Article number: 2598-066
It is delivered in a rolling transport case with a telescopic handle. You also receive a lifting eyelet and a shackle for positioning the pin removing tool.
A set consists of: an aluminum hydraulic cylinder, three column sections, a quick release nut, lifting eye, shackle and case
additional quick release nuts as EXTRA - suitable for the respective model:
PPH40: internal thread - 1" - 14 UNS
PPH66: internal thread - 1" - 14 UNS. M36 x 4,0. M48 x 5,0
